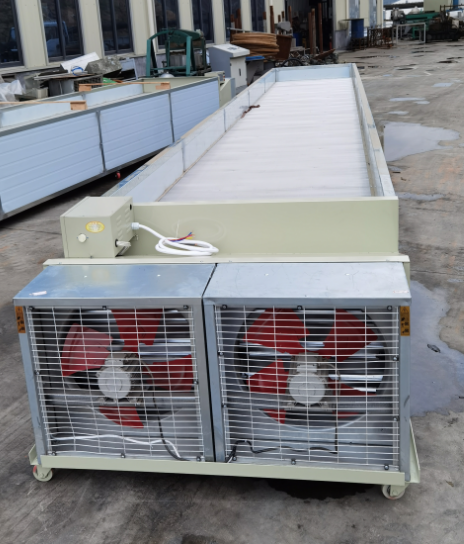

Name: wilting trough
Model: YY6CWD-7
Quantity: 11
Parameter:
1. 6.0m*1.8m
2. Capacity: 500kg/one time
3. Withers Time: 10 hours
4. Capacity: 1000kg/24 hours
5. Power: 14kw
6. Weight: 500kg |
|
|

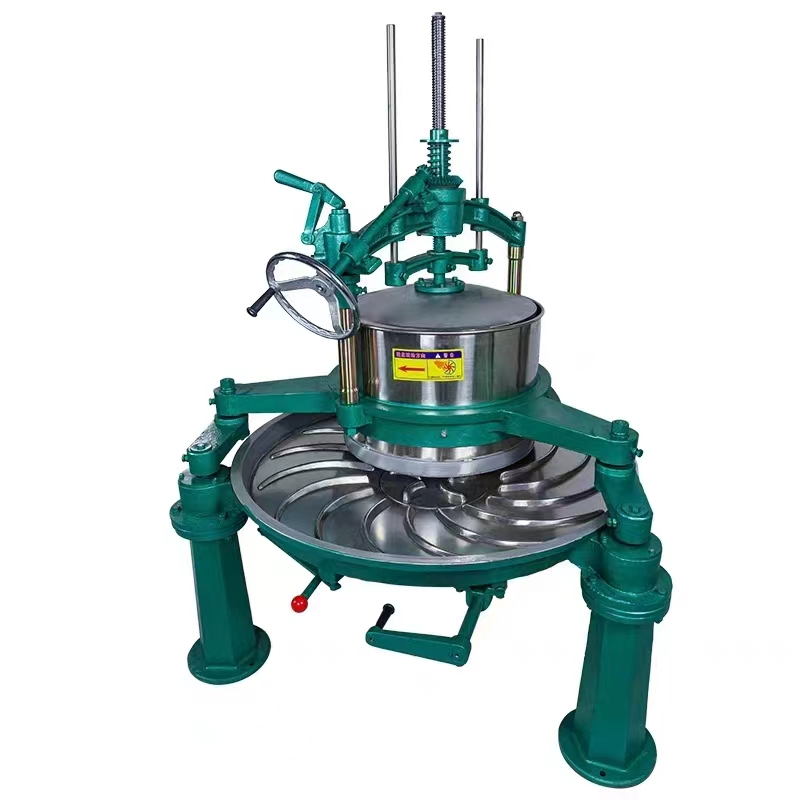

Name: rolling machine
Model: YY6CRT-40, YY6CRT-65
Quantity: 1 set of YY6CRT-40
plus 20 set of
YY6CRT-65
Parameter:
1. 1.5*1.5*1.6M
2. Capacity: 50KG fresh
leaves/ barrel/one time, 2-3
hours/one time
3. Capacity: 500kg/24 hours
4. Power: 3.0kw
5. Weight: 230kg(YY6CRT-40),
510kg(YY6CRT-65） |
|
| |
|
|
 |
 |
|
Name: tea ball breaker
Model: YY6CJK-40
Quantity: 5
Parameter:
1. 1.2*0.5*1.1M
2. Capacity: 100kg fresh
leaves/hour, 2400kg/24 hours
3. Power: 0.75kw
4. Weight: 60kg |
|

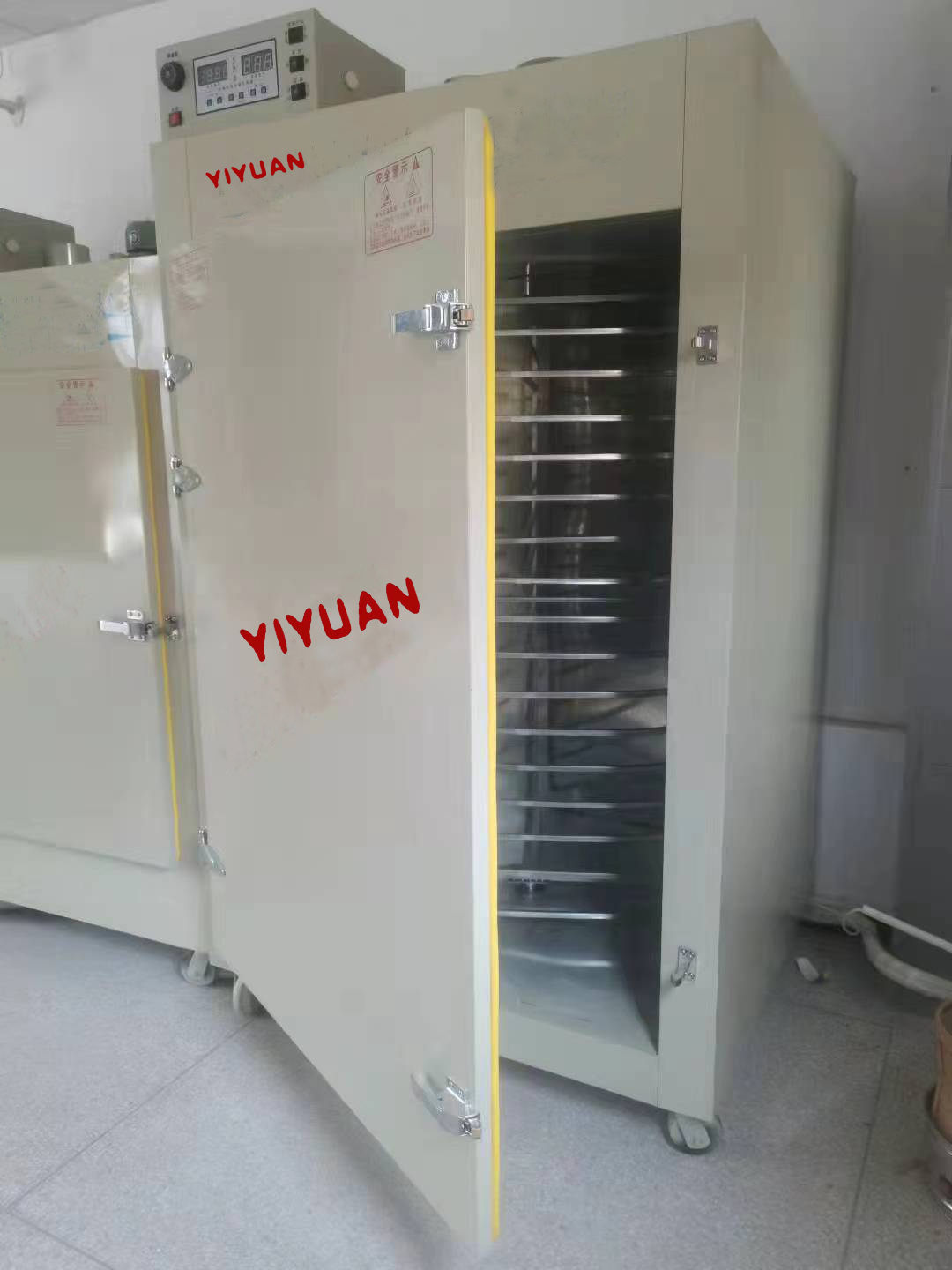

Name: Fermentation machine
Model: YY6CFJ-8
Quantity: 1
Parameter:
1. 0.9*0.9*2.1M
2. Capacity: 150kg/unit, 900kg/24 hours
3. Time: 3-4 hours/one time
4. Power: 4.0kw
5. Unit: 16 traies
6. Weight: 250kg |
| |
|
|
 |
 |
|
Name: Fermentation room
Model: YYFJ- 24L
Quantity: 1
Parameter:
1. 4*3*2.3M, 24 M3
2. Capacity:
1700kg/Container, 3-4
hours/one time
3. Capacity: 900kg/24 hours
4. Fermentation racks: 15;
Sieve: 80; 0.6*0.4 *0.2
5. Power: 36kw
6. Weight: 1000kg |
|
|

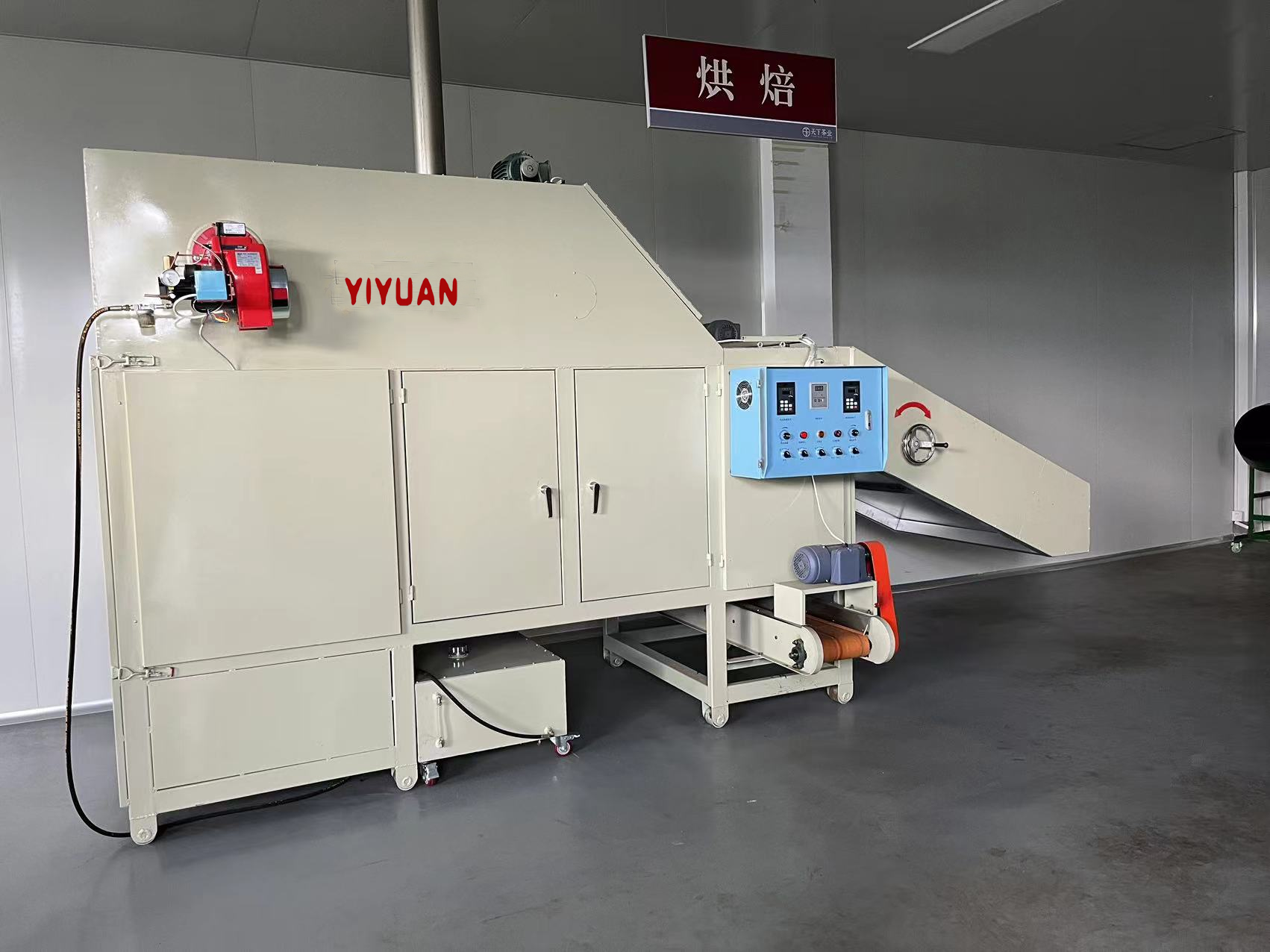

Name: Dehydrating machine
Model: YY6CST-60
Quantity: 2
Parameter:
1. 4*0.9*1.6M
2. Capacity: 60KG of dry
tea/hour/unit
3. Capacity: 1200KG/24
hours/unit
4. Power:
62KW
5. Weight: 500kg |
|
| |
|
|
 |
 |
|
Name: Baking machine
Model: YY6CHZ-9
Quantity: 2
Parameter:
1. 1.2*1.1*2.1M
2. Capacity: 15kg of dry
tea/hour/unit
3. Power: 12KW
4. Weight: 250kg |
|
|
Name: Cutting machine
Model: YYQC-60
Quantity: 2
Parameter:
1. 1.0*0.6*1.0M
2. Capacity: 200kg of dry tea/hour/unit
3. Power: 1.1 kw
4. Weight: 100kg |
|
| |
|
|
 |
 |
|
Name: Tea crusher
Model: YY6CFC-80
Quantity: 2
Parameter:
1. 1.6*0.8*1.65M
2. Capacity: 200kg of dry tea/hour/unit
3. Power: 1.5 kw
4. Weight: 260kg |
|
|

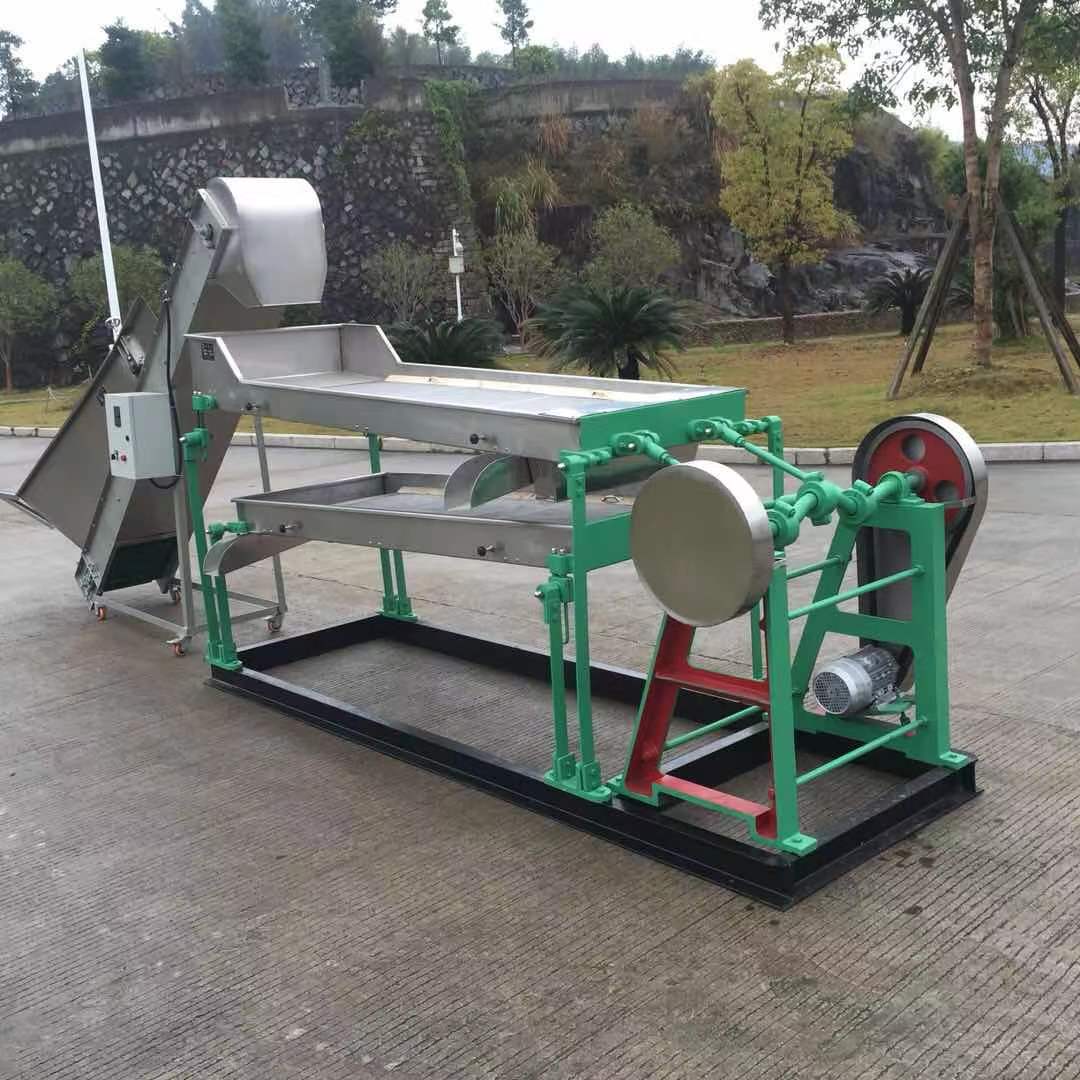

Name: Sieve separation
machinery
Model: YY6CSSP=98
Quantity: 1
Parameter:
1. 3.6*1.1*1.68M
2. Capacity: 350kg of dry
tea/hour/unit
3. Power: 3.2kw
4. Weight: 500kg |
|
| |
|
|
 |
 |
|
Name: Bucket screen
separation machinery
Model: YY6CDS-22
Quantity: 1
Parameter:
1. 2.8*1.0*1.1M
2. Capacity: 350kg of dry
tea/hour/unit
3. Power: 12kw
4. Weight: 530kg |
|
|
Name: Secondary Bucket
screen separation machinery
Model: YY6CDY-15
Quantity: 1
Parameter:
1. 5.2*1.0*1.1M
2. Capacity: 350kg of dry
tea/hour/unit
3. Power: 12kw
4. Weight: 520kg |
|
| |
|
|
 |
 |
|
Name:
Secondary drying machine
Model: YY6CCP-65
Quantity: 2
Parameter:
1. 2.1*1.3*1.6M
2. Capacity:
100KG of dry tea/hour/unit
3. Power: 40kw,380V
4. Weight: 540kg |
|
|
Name: Conveyor belt
Model: YY6CFT-60
Quantity: 10
Parameter:
1. 3*0.7M, Customized
according to actual
situation.
2. Capacity: 500kg
of dry tea/hour/unit
2. Power: 0.4kw
3. Weight: 300kg |
|
