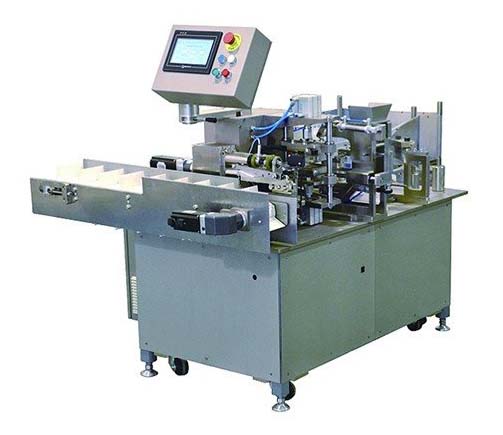

> CTNDXD05CW180 Envelope packing machine |
Model CTNDXD05CW180 offer a new aspect for
envelope packing solutions.This machine connect
with model CTNDXDC50 as an envelope packing

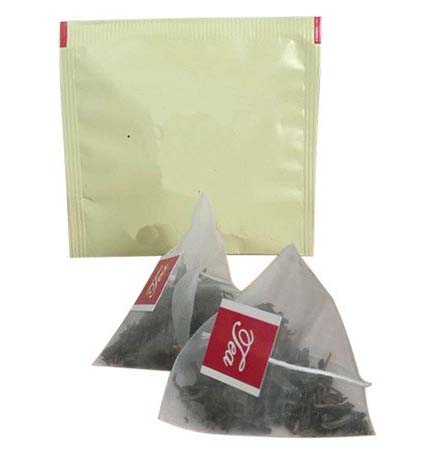

machine.It helps model CTNDXDC50 get pyramid tea
bag with envelope.The different kinds of
materials packed with envelope,will keep
materials in fresh and good taste.It is
controlled by PLC,touch screen display,Operating
easily.
Characteristics
♦ Modular design, both inside and outside
independent switching for pyramid tea bag and
envelope bag.
♦ Adapt a variety of pyramid tea bag sizes.
♦ Automatic alarm and stop when detected
envelope bag jam.
♦ With a stack and count output.
♦ Machine meet GMP and CE certification
requirements.
♦ Servo controls the length of traction and
ensures printing logo on a proper place.
Technical
data
|
Machine Model |
CTNDXD05CW180 |
|
Machine name |
Envelope packing machine |
|
Capacity |
80bags/min |
|
Envelope dimension(LxW) |
80mm×85mm 90mm×95mm 100mm×105mm |
|
Air pressure |
0.6MPa |
|
Air consumption |
140 L/min |
|
Power supply |
AC 220V(can be customized according to
customer requirements) |
|
Power |
2.1KW |
|
Net weight |
600kg(envelope packing machine),80kg(tea
bag conveyor belt) |
|
Gross weight |
750kg(envelope packing
machine),150kg(tea bag conveyor belt) |
|
Overall dimension(LxWxH) |
2700mm×1450mm×1300mm |
|
Carton dimension(LxWxH) |
1716mm×1356mm×1480mm(envelopepacking
machine),1940mm×690mm×590mm(tea bag
conveyor belt) |
Packing
materials
Envelope paper : 1400bags/kg Paper/foil/P.E
materials.(The different thickness of film, the
final quantity is different).
Width of roll : 180mm. (PET mesh width:140mm)
Customized:Offer print your own artwork with min
quantity.
|
