> CTNDXD01KM120 single-chamber high-speed tea
bag packing machine |

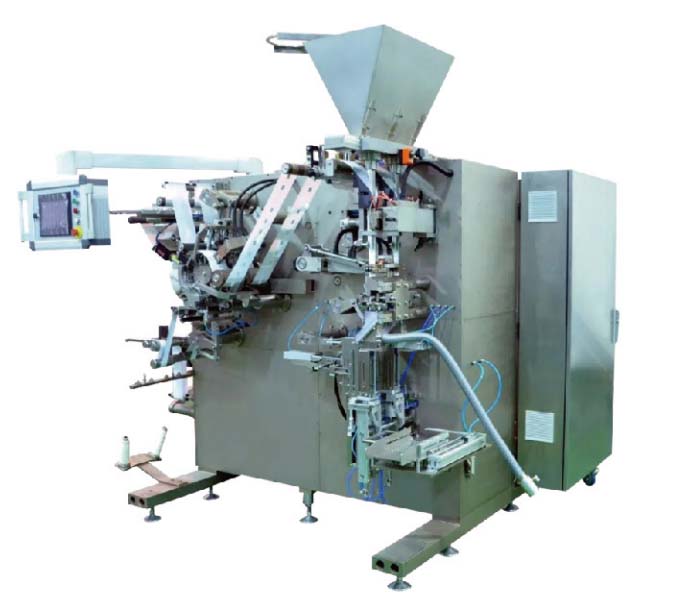

The teabag packing machine Model CTNDXD01KM120
is single-chamber high-speed machine, and it is
mainly used to pack broken tea and other
granular materials (20-40 meshes bulk
non-viscidity granular or sheet materials). Its
main functions include automatic feeding,
double-row slitting of tea bag, heatsealing of
tag, cotton thread and filter paper, tea bag
counting, grouping and output, etc. Through PLC,
HMI and multi axis servo control system, the
products packing are completed coordinately and
orderly. The functional systems can be
customized and developed, such as tea bag
summary into envelope bag, envelope bag
heat-sealing forming, envelope bag counting,
grouping and output.
Characteristics
1. Double-row synchronous output, higher
production efficiency.

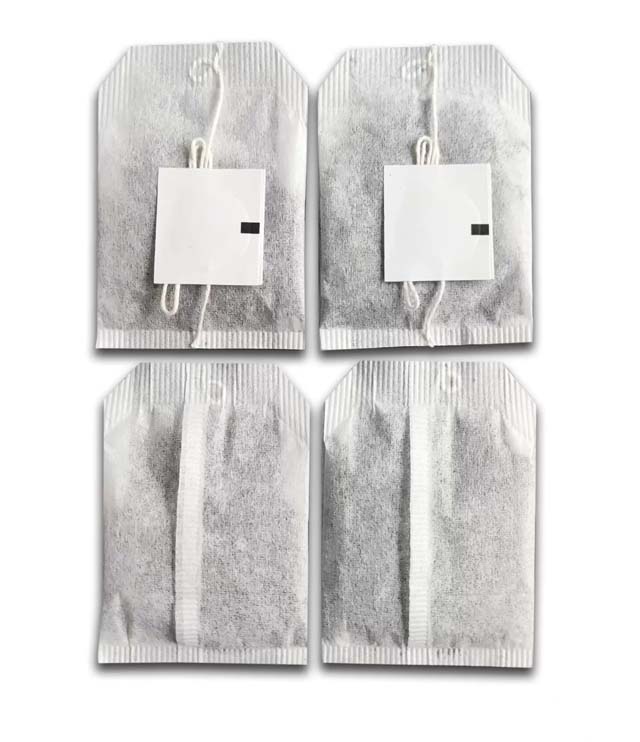

2. New designed bag: Back-seal, sides folding,
chamfer cutting.
3. Cotton thread is winded, its length is
adjustable.
4. Automatic heat-sealing for tag, filter paper
and cotton thread.
5. New drawer type double-position metering
feeding.
6. Active unwinding of packing materials,
double-row slitting, automatic correction.
7. Can customize different dimensions of tea bag
and envelope bag.
8. Can customize and expand the functions of
envelope bag stacking and boxing,ect.
Technical
data
|
Machine Model |
CTNDXD01KM120 |
|
Machine name |
high-speed tea bag packing machine |
|
Packed tea/herb |
broken tea and other granular materials
(20-40) meshes bulk non-viscidity
granular or sheet materials |
|
Max. dosage |
6cm³±5% |
9cm³±5% |
12cm³±5% |
|
Tea bag dimensions |
40×60 mm |
45×65mm |
50×80mm |
|
Envelope bag dimensions |
70×80mm（customized） |
75×95mm（customized） |
|
Tag dimensions |
20mm×24mm |
|
Cotton thread length |
155mm±5mm |
|
Max capacity (single row) |
120 bags per minute |
|
Max capacity (double row) |
240 bags per minute |
|
Power supply |
380V AC (can be customized according to
customer requirements) |
|
Power |
10kW |
|
Compressed air supply |
6bar,400/min |
|
Other functions |
Automatic alarm warning stop for
materials shortage, malfunctions, etc. |
Packing
materials
Heat sealing
filter paper : Single side heat-sealing
,16.5-22g/㎡ ,width:232mm , 8100bags/kg.
Label paper:
Paper/plastic (PE) composite film, 150-180g/㎡,
paper thickness of 0.15-0.2mm, width:80mmThe
paper can be printed according to the user's
needs.
Cotton
thread: The thread should be original cotton
thread with 3 strands of No.16 (20 in English
System) thread wound into cone,
24500teabags/Roll.
|
